Engines: GX270T2 QC3



* Price may vary depending on location.

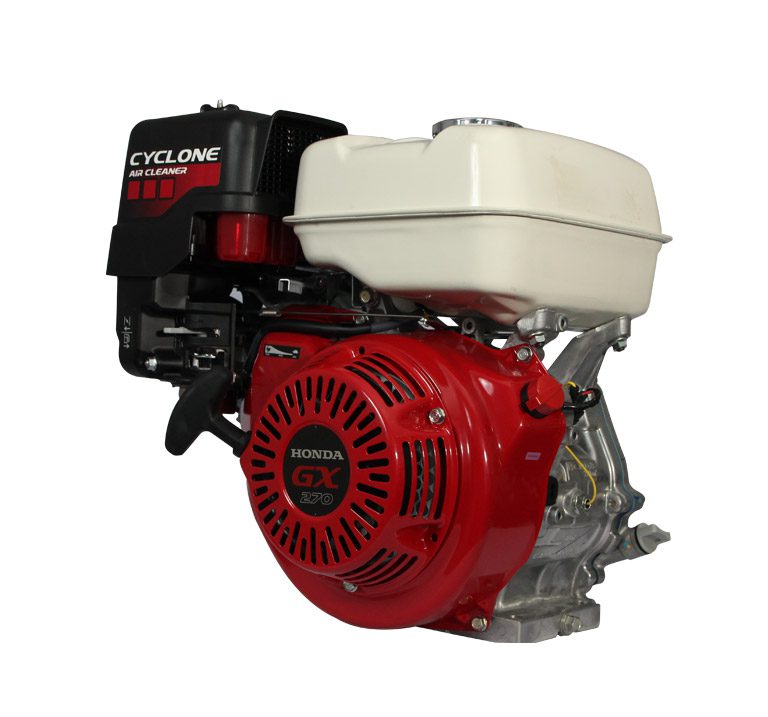

* Photo may vary from the actual unit.







Engines: GX270T2 QC3

SRP: ₱ 25,500

Category: Construction

Displacement: 270 cm³ (16.5 cu–in)

Net Power : 5.9kW (7.9HP)

Find a dealer for this product.

[media-downloader media_id=”3412″ texts=”Download Product Flyer”]

Type: 4 Stroke, OHV, Single cylinder, inclined 25°
Bore x stroke: 77.0 x 58.0 mm (3.0 x 2.3 in)
Displacement:  270 cm3 (16.5 cu–in)
Net power (SAE J1349) * 1: 5.9 kW (7.9 HP) / 3,600 min-1 (rpm)
Maximum net torque (SAE J1349): 18.0 N·m(1.83 kgf·m, 13.2 lbf·ft) / 2,500 min-1 (rpm)
Compression Ratio: 8.5 : 1
Fuel consumption (at continuos rated power) *1: 2.4 Liters (0.63 US gal, 0.53 Imp gal) / h
Ignition system: C.D.I.(Capacitor Discharge Ignition) type magneto ignition
Lubrication system: Forced splash
Oil capacity: 1.1 Liters (1.16 US qt, 0.97 Imp qt)
Starting system: Recoil starter
Air cleaner: 1.1 Liters (1.16 US qt, 0.97 Imp qt)
Governor: Mechanical centrifugal
Fuel used: Gasoline with a pump octane rating of 86 or higher
Fuel tank capacity:
Dry Weight: 25.9 kg (57.1 lbs)
PTO Size: 25.375 – 25.4 mm (0.9990 – 1.0 in)
Include Remarks / Application: Concrete cutter, road roller



The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3,600 rpm (net power) and at 2,500 rpm (max net torque). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
